Fékezési röntgensugárzás

Tüzes Dániel

Szóköz, jobbra nyíl, bal klikk, page down a következő diához
backspace, page up az előző diához

Fékezési sugárzás
Jelenség ismertetése

klasszikusan is értelmezhető, és adott paraméter intervallumban megfelelő a közelítés
gyorsuló elektromos töltés EM mezeje változó, mely felbontható EM hullámok összegére
- az EM hullámok energiát (és impulzust) visznek el
- csökken a mozgó töltés energiája
fékezési sugárzás: alkalmazás az elektronra
elektronokkal lőtt céltárgyak során EM sugárzás detektálható (katódsugárcső)

A sugárzás eredete

az atom távolról semleges, közelebbről negatív töltésű, nagyon közel pedig vonzó (atommag)
az elektronok hígan vannak, kicsi a hatásuk (de van)
- elektronállapotok gerjesztéseit megfigyelhetjük

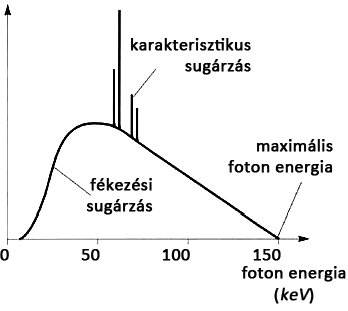

- járulékot adnak a spektrumban, karakterisztikus sugárzás
az elektronfelhőn átjutott elektronokat a mag vonzza
a sugárzás a szórás közben fellépő gyorsulásból adódik

Mit akarunk tudni?

szeretnénk magyarázatot adni a mérési eredményre
- ha a teljes alakra közvetlenül nem is, de a maximális energiára igen
- a teljes alak többszörös szórási folyamatok, és nem kisszögű eltérülések járulékából adódik
pontosabban: meg szeretnénk határozni a differenciális sugárzási hatáskeresztmetszetet:

$\frac{d^{2} χ}{d ω d Ω} = \frac{d I}{d ω} \cdot \frac{d σ}{d Ω}$ (0.1)

melyben $ω$ a sugárzás frekvenciája, $\frac{d σ}{d Ω}$ a differenciális szórási hatáskeresztmetszet (ismert pl. Rutherford szórás esetén). Itt $d Ω$ a bejövő elektronáramhoz képesti elemi térszöget jelenti.

Hogyan számolunk?

Landau: perturbációként kezeli, és mint dipólussugárzás íjra le
- az sugárzás során az impulzusváltozást elhanyagoljuk, hisz dipólussugárzás során a kibocsátott impulzus 0
- kiszámoljuk a pályát 0-ad rendű közelítésben, a pálya során a gyorsulást, mint két, kúpszeleti (hiperbolikus) pályán mozgó töltésre, elhanyagolva a mag mozgását
- ismert gyorsulás $-$ kisugárzott energia összefüggésből kifejezhető a teljes kisugárzott energia
- probléma: számolás során bejönnek nevezetes, de nem hétköznapi függvények (Hankel függvények)
J. D. Jackson: általános r ( t ) MathType@MTEF@5@5@+=feaagCart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbdfgBPjMCPbqefmuyTjMCPfgarmqr1ngBPrgitLxBI9gBamrr1ngBPrwtHrhAYaqeguuDJXwAKbstHrhAGq1DVbWefv3ySLgznfgDOfdarCqr1ngBPrginfgDObYtUvgarqqr1ngBPrgifHhDYfgasaacH8qrps0lbbf9q8WrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbba9q8WqFfea0=yr0RYxir=Jbba9q8aq0=yq=He9q8qqQ8frFve9Fve9Ff0dmeaacaGacmGadaWaaiqacaabauaagaaakeaacaWHYbWaaeWaaeaacaWG0baacaGLOaGaayzkaaaaaa@4C78@ pálya, hosszas számolások
- határesetben egyszerűbb formulák
- csupán az eredmények felhasználásával, és gyors egymásba helyettesítésével megfelelő áttekintést kapunk

Intenzitás eloszlás vizsgálata - bevezetés

tetszőleges $r (τ)$ pályán mozgó ponttöltés Liénard-Wiechert-potenciálja

$A^{α} (x) = {\frac{e V^{α} (τ)}{V \cdot x - r (τ)} |}_{τ = τ_{0}}$ (1.1) téridő

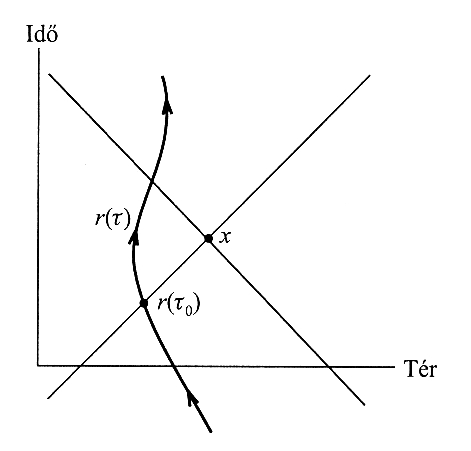

ahol $V^{α}$ a mozgó ponttöltés négyessebessége, $τ_{0}$ -t a retardációs követelmény, ${(x - r (τ_{0}))}^{2} = 0$ egyenlet határozza meg, melyben $x$ a megfigyelési pont koordinátái.
